Structural Movement Requiring Urgent Stabilisation
A semi-detached townhouse in North Dublin experienced significant structural movement during 2024, requiring urgent investigation and intervention.
PKT Chartered Engineers were appointed to:
- Assess the cause of movement
- Support and negotiate the insurance claim
- Oversee the full repair process from start to completion
The Issue
The property initially presented with cracking consistent with subsidence.

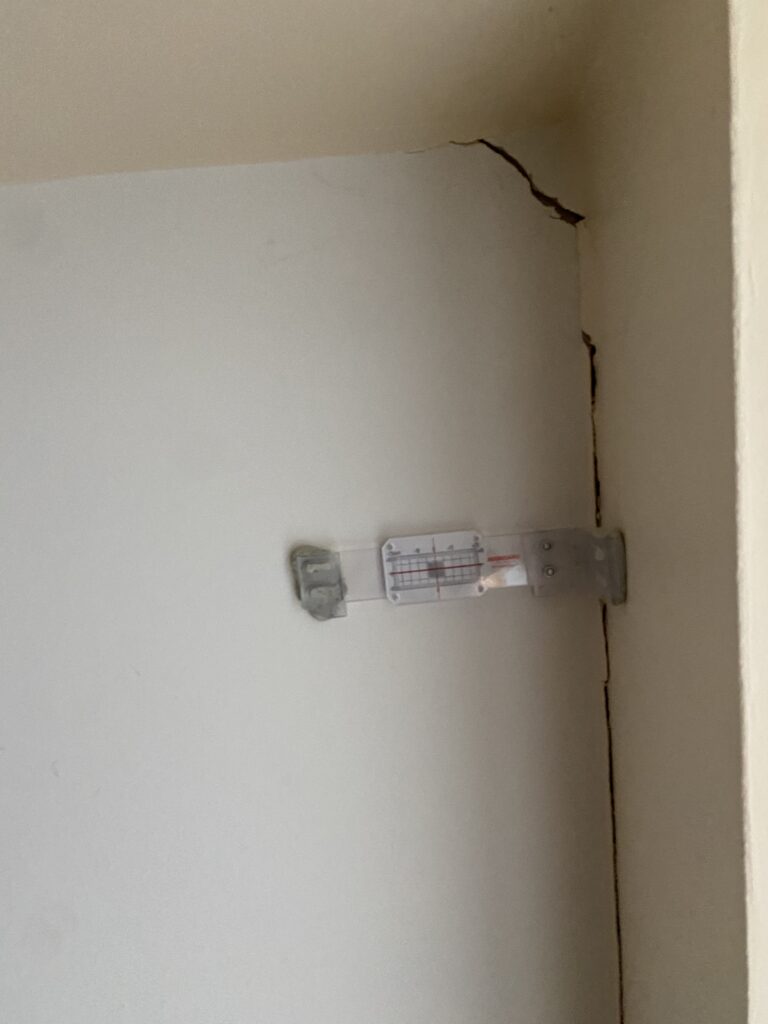

However, following monitoring and opening-up works:
- Movement was confirmed to be active and progressing
- Structural damage was found to be more extensive than initially visible
- The building required immediate stabilisation measures
Investigation Findings
Further investigation revealed:

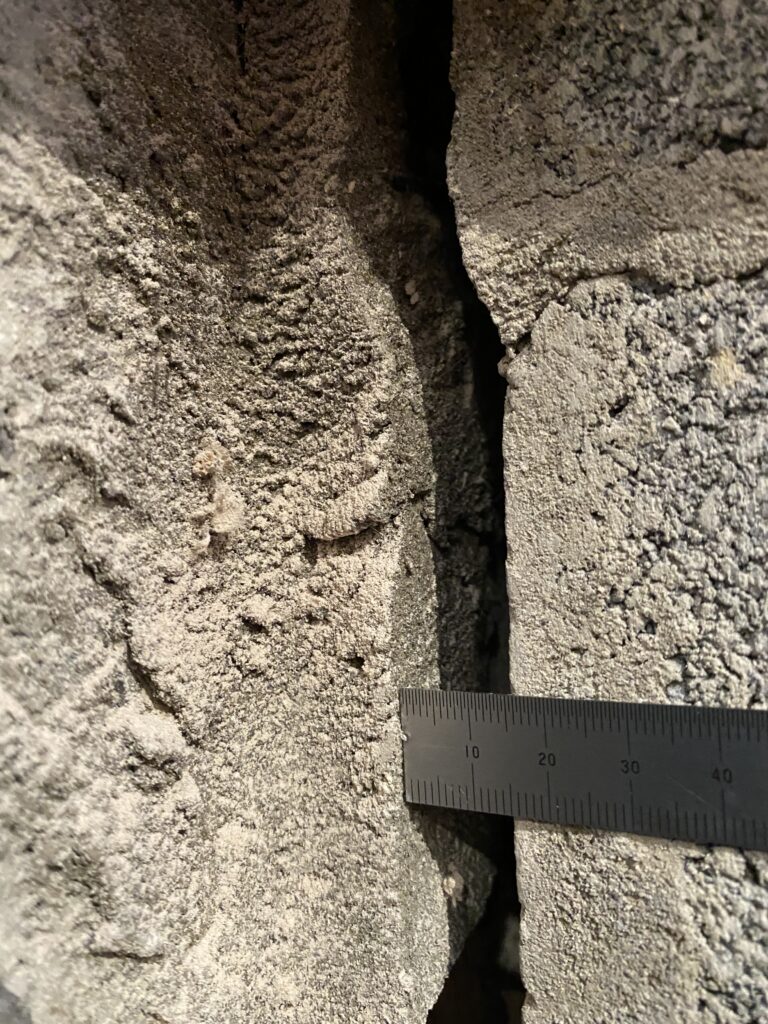

- Significant cracking within structural elements once finishes were removed
- Increased vulnerability due to large open-plan areas with high ceilings
- The need for a more substantial structural solution than initially anticipated
These findings are typical in subsidence cases, where surface cracking often underrepresents the true extent of damage.
The Structural Solution
A comprehensive stabilisation scheme was implemented, including:

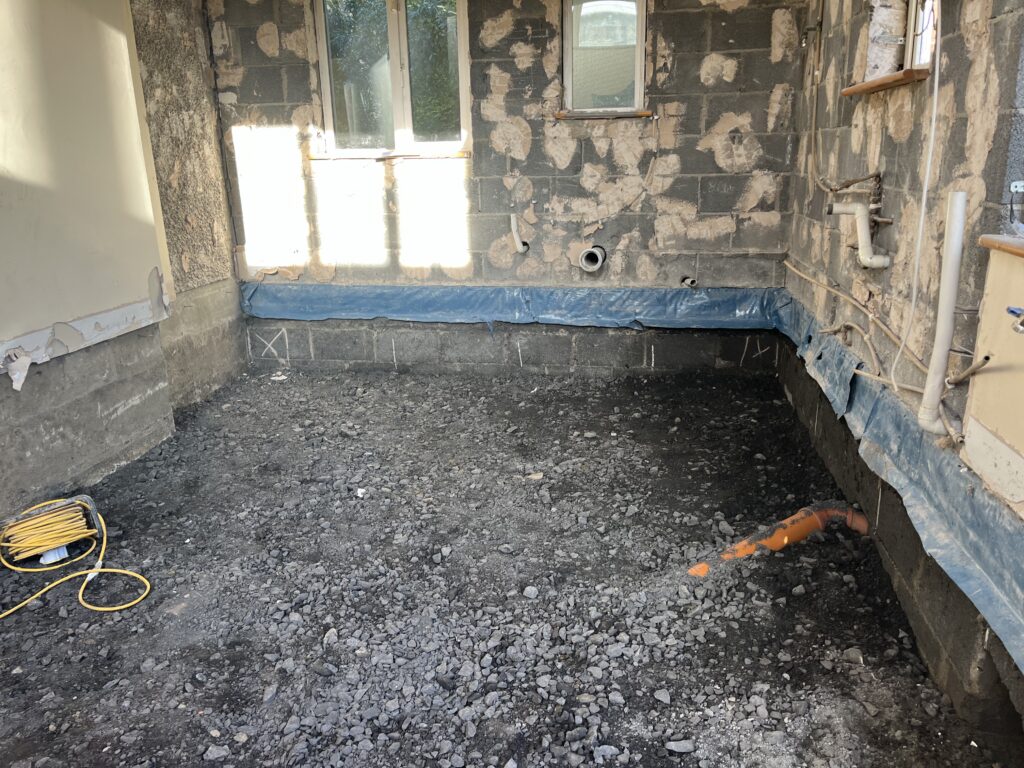

- Full removal of the existing ground floor slab

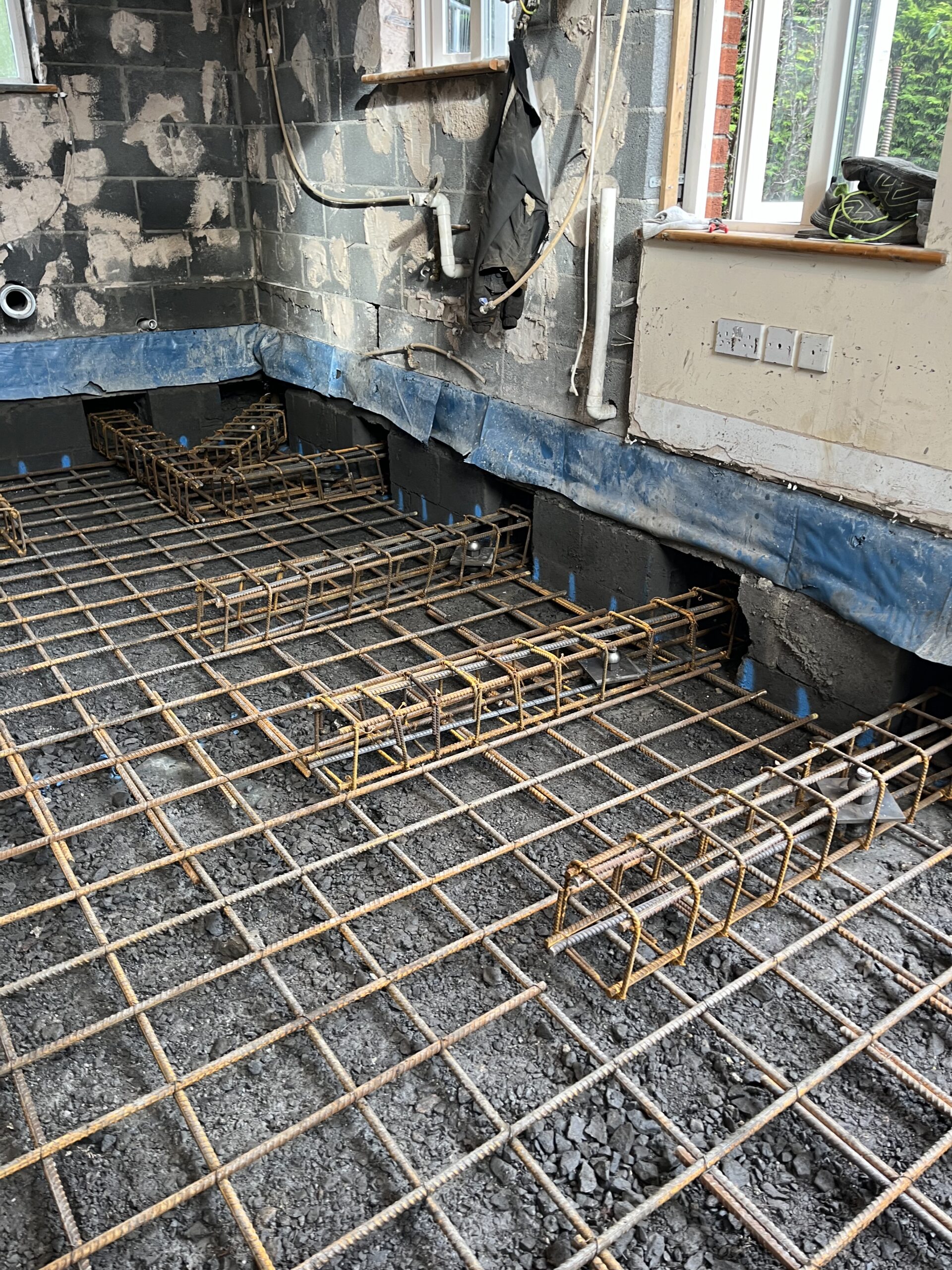

- Installation of a piled raft foundation system
- Temporary works to support the structure during construction
- Additional structural strengthening to restrain the building
This approach addressed the underlying cause of movement and provided long-term stability.
Insurance Claim Support
The project was carried out under an insurance claim, with full engineering involvement throughout:
- Preparation of technical reports
- Support during claim negotiation
- Coordination with insurer and contractor
- Oversight of all structural works
Reinstatement Works

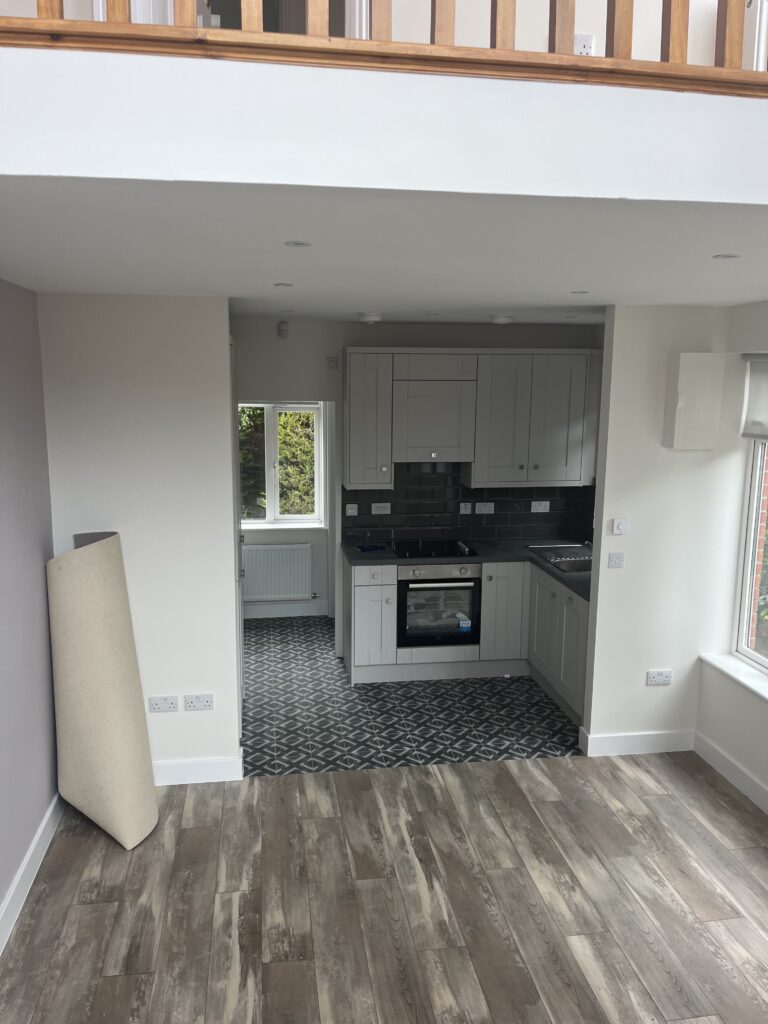

Following stabilisation, the property was fully reinstated, including:
- New ground floor construction
- Kitchen, bathrooms, and internal finishes
- Full redecoration
- External patio works
Outcome
- Structural movement was addressed through foundation reconstruction
- The building was stabilised and made suitable for continued residential use
- Works were successfully completed within the insurance framework
Project details have been generalised to protect client confidentiality.
